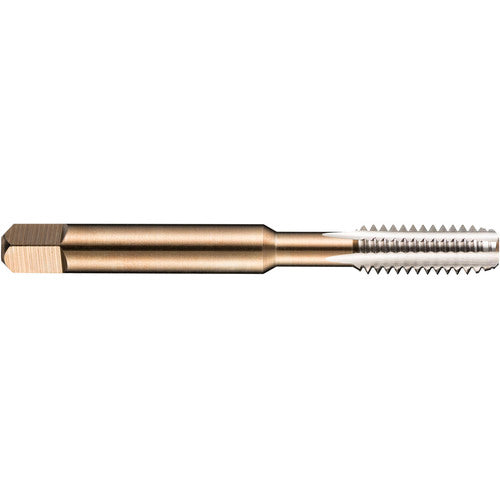

Dormer HSS Bright UNF Hand Tap Straight Flute ANSI Series E071 E-code # E0713/8NO2
Item #: HP430349670
Brand: Dormer
Model #: 5974086
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/8″ |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 24 |
| Coating | Bright |
| Thread Standard | UNF |
| Tapping Prehole Diameter (Pre-hole) | Q |
| Overall Length (OAL) | 2-15/16″ |
| Flute Length | 0.81″ |
| Thread Cutting Part Length (THL) | 0.81″ |
| Flute Type | Straight |
| Usable Length (LU) | 1.378″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials |
| Measurement Type | Fractional |
| Cutting Edge Material | HSS |
| Series/List # | E071 |
| Thread Tolerance Class (TCTR) | 2B | 3B | H4 |
| Thread Size | 3/8″ - 24 |
| Standard | ANSI |
