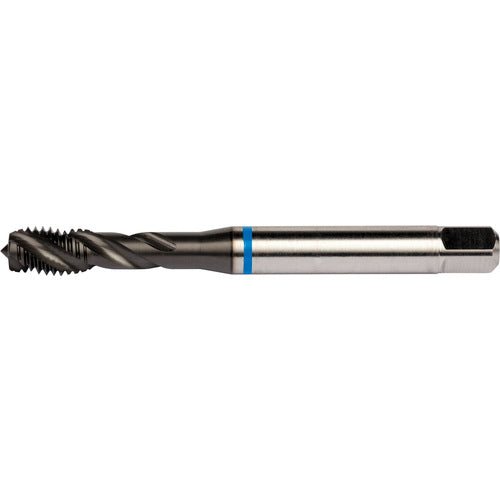

M14x2.0 HSS-E PM 4 Flute 6H 40 Degree Blue Shark Machine Tap Spiral Flute-Super-B E-code # E628M14
Item #: HP437350380
Brand: Dormer
Model #: 7350380
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M14 |
| Standard | DIN ANSI |
| Thread Pitch (TP) | 2 mm |
| Tool Type | Machine Tap |
| Thread Standard | M |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 110 mm |
| Coating | Super-B |
| Connection Diameter Machine Side (DCONMS) | 0.429″ |
| Flute Type | Spiral |
| Flute Count (NOF) | 4 |
| Style | Semi-Bottoming |
| Flute Helix Angle (FHA) | 40 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Stainless Steel |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS-E PM |
| Length Group | 2.5xD |
| Thread Tolerance Class (TCTR) | 6H |
| Measurement Type | Metric |
| Special Feature | Blue Shark |
