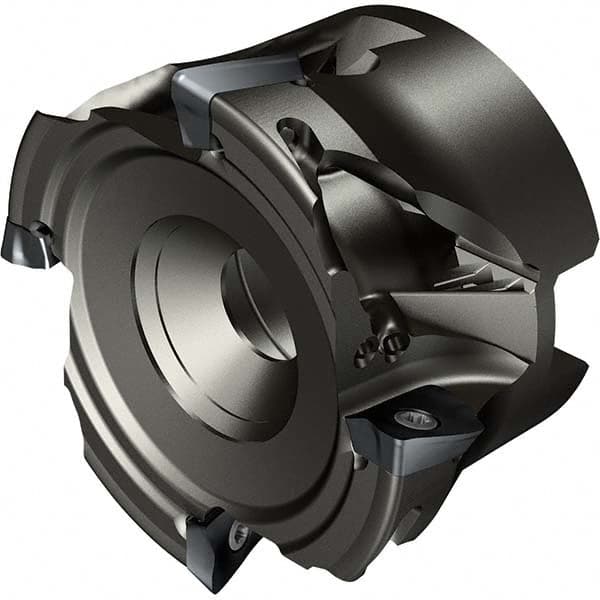

Sandvik Coromant - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 40.00 Cutting Diameter (Decimal Inch): 1.5748
Item #: 13044227
Brand: Sandvik Coromant
Model #: 7503703
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 40.00 ; Cutting Diameter (Decimal Inch): 1.5748 ; Arbor Hole Diameter (mm): 16.00 ; Lead Angle: 90 ; Overall Height (mm): 30.00 ; Insert Compatibility: R390-11
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 16.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 30.00 |
| Insert Compatibility | R390-11 |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | R390 |
| Number of Flutes | 3 |
| Maximum RPM | 10000 |
| Toolholder Material | Titanium |
