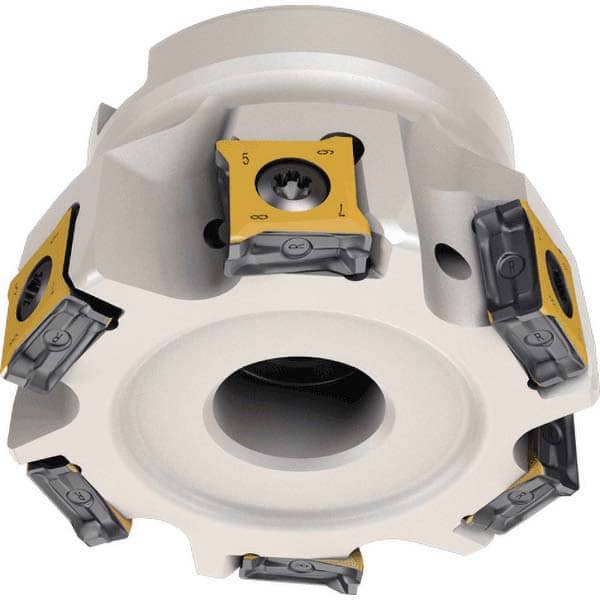

Iscar - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 38.10 Cutting Diameter (Decimal Inch): 1.5000
Item #: 31175557
Brand: Iscar
Model #: 3332792
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 38.10 ; Cutting Diameter (Decimal Inch): 1.5000 ; Arbor Hole Diameter (Inch): 0.75 ; Arbor Hole Diameter (Decimal Inch): 0.7500 ; Lead Angle: 90 ; Overall Height (mm): 40.00000
| Cutting Diameter (mm) | 38.10 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 0.75 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00000 |
| Overall Height (Decimal Inch) | 1.5740 |
| Insert Compatibility | T890 LN.T |
| Series | T890HT |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 36.500 |
| Hub Diameter (Decimal Inch) | 1.4400 |
