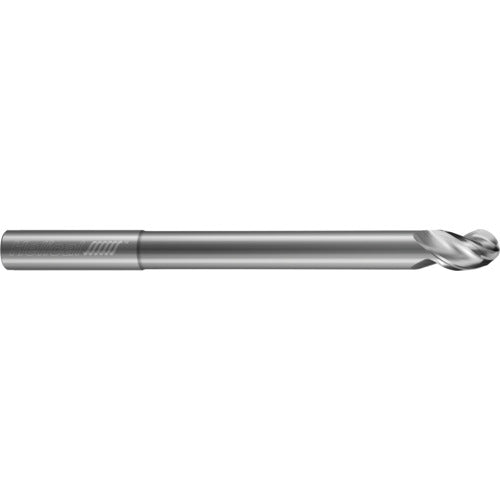

H40ALV-RN-X-30125-BN_
Item #: HS1083565
Brand: Helical Solutions
Model #: 83565
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Corner Radius (RE) | 0.063″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Neck Diameter (DN) | 0.118″ |
| Depth of Cut Maximum (APMX) | 5/32″ |
| Neck Length (LN) | 1.344″ |
| Overall Length (OAL) | 3″ |
| End Shape | Ball |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.125″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Center Cutting | Yes |
| Flute Helix Angle (FHA) | 40 Degrees |
