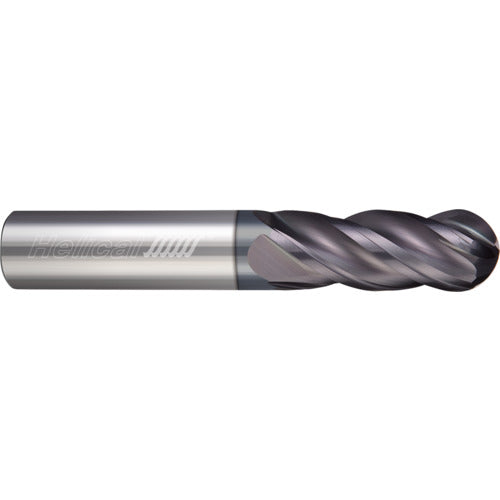

4 Flute - Ball - 0.2812″ (9/32) Cutter DIA × 0.3125″ (5/16) Shank DIA × 0.1400″ (9/64) Radius × 1.0000″ (1) LOC × 3.0000″ (3) OAL - APLUS Coated
Item #: HS1084745
Brand: Helical Solutions
Model #: 84745
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 9/32″ |
| Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Corner Radius (RE) | 0.141″ |
| Depth of Cut Maximum (APMX) | 1″ |
| End Shape | Ball |
| Overall Length (OAL) | 3″ |
| Decimal Equivalent | 0.2812″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | APLUS |
| Center Cutting | Yes |
