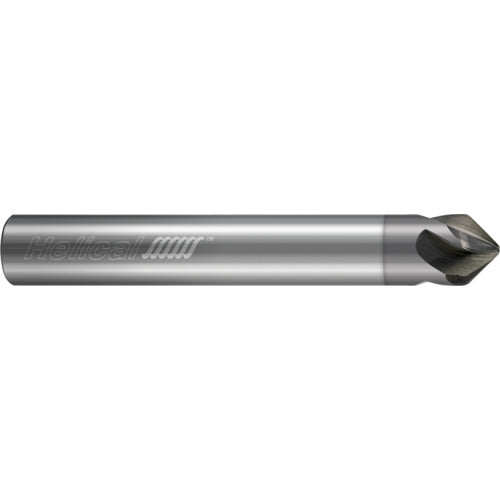

4 Flute - Taper - 0.3750″ (3/8) Cutter DIA × 0.3750″ (3/8) Shank DIA × 27.0000″ Major Radius × 0.0469″ (3/64) Tip Radius × 0.1875″ (3/16) Corner Radius × 0.3281″ (21/64) LOC × 2.5000″ (2-1/2) OAL - NPLUS Coated
Item #: HS1086285
Brand: Helical Solutions
Model #: 86285
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Body Half Taper Angle (BHTA) | 30 Degrees |
| Depth of Cut Maximum (APMX) | 21/64″ |
| Point Angle (SIG) | 60 Degrees |
| Flute Count (NOF) | 4 |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 27″ |
| End Shape | Tapered End Mill |
| Overall Length (OAL) | 2-1/2″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
