PF440S VISE ASSEMBLY SER
Item #: HT80PF440S
Brand: Kurt
Model #: PF440S
| Product Specifications | |
|---|---|
| Type | PF440S VISE ASSEMBLY SER |
| Model No | PF440S |
| Jaw Width | 4″ |
| Jaw Depth | 4-1/8″ |
| Jaw Opening Capacity | 4-5/8″ |
| Weight | 15 |
| Jaw Height | 2.942″ |
| Clamp Travel | 4-5/8″ |
| Orientation Type | Vertical |

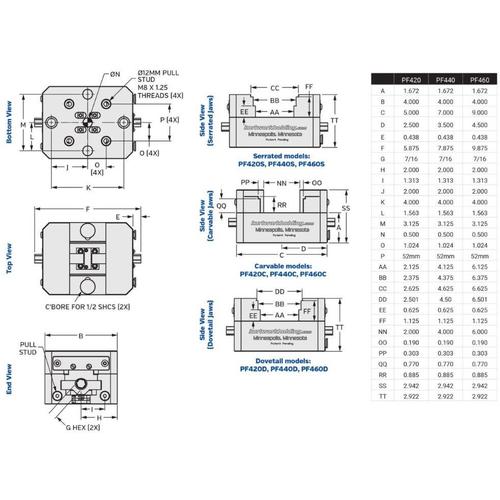

| Mounting Hole | Yes, see diagram |
| Number of Stations | 1 |
| Length Between Mounting Holes | 52 mm |
| Base Length | 6-1/4″ |
| Width Between Mounting Holes | 52 mm |
| Base Motion Type | Static |
| Overall Length | 7-7/8″ |
| Maximum Clamp Force | 3,300 lbs |
| Overall Height | 2.892″ |
| Base Height | 1.642″ |
| For Use With | CNC Machining Centers, Designed for 5 Axis Machining |
| Base Width | 4″ |
| Set Includes | 1 Set of Jaws |
| Material | Body- Steel With Ht Bed |
| Jaw Type | Serrated |
| Precision | Y |
| Overall Width | 3.96″ |
| Spindle Operation Type | Manual |
| Bed Height | 1.672″ |
| Throat Depth | 5/8″ |
