Brand: Widia / Part #: 3632141

Brand: Widia / Part #: 3632141


Item #: 99719353
Brand: Widia
Model #: 3632141

Product Specifications

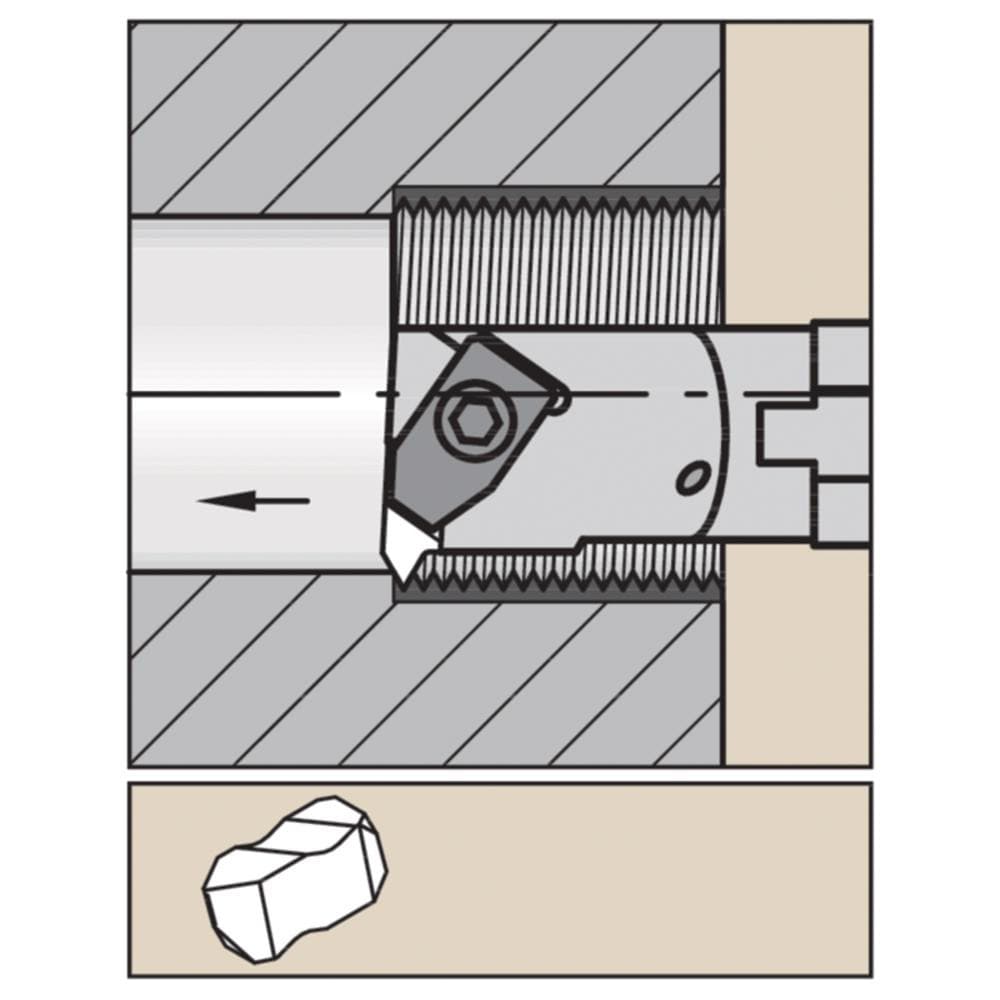

Thread Type Internal
Hand of Holder Left Hand
Shank Width/Diameter (Decimal Inch) 1.7500
Compatible Insert Size Code 4
Shank Width/Diameter (Inch) 1-3/4
Toolholder Style NEL
Insert Compatibility N.4R
Coolant Entry Style Code 1-Axial Concentric Entry
Insert Holding Method Clamp
Shank Height (Decimal Inch) 0.0000
Shank Length (Inch) 14
Shank Length (Decimal Inch) 14.0000
Overall Length (Inch) 14
Overall Length (Decimal Inch) 14.0000
Minimum Bore Diameter (Decimal Inch) 2.5000
Series A-NE
Multi-use Tool Yes
Cutting Tool Application Grooving; Chamfering; Threading
Maximum Depth of Cut (Decimal Inch) 0.2402
Adjustable Overhang Yes
Back of Bar to Cutting Edge (Inch) 2-1/8
Back of Bar to Cutting Edge (Decimal Inch) 2.1250
Center to Cutting Edge (Decimal Inch) 1.2500
Insert Inscribed Circle (Decimal Inch) 0.4531
Insert Inscribed Circle (Inch) 29/64
Insert Inscribed Circle (mm) 11.51
Primary Workpiece Material Code P; S; H; K; M; N; O
Coolant Hole Thread Size (Inch) 1/4-18 NPT
Toolholder Material Steel
Insert Thickness (Decimal Inch) 0.2550
Style NEL
Coolant Through Yes
$ 361.43
