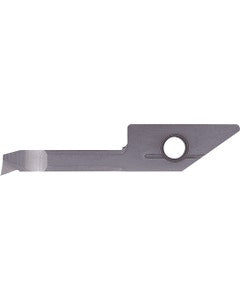

VNBR 041102S PR930 Grade PVD Carbide, Micro Boring Bar
Item #: KY90TKT09590
Brand: Kyocera Precision Tools
Model #: TKT09590
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (DMIN) | 4 mm |
| Usable Length (LU) | 11 mm |
| Functional Length (LF) | 30.8 mm |
| Shank Height (H) | 3.9 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
| Coating | TiCN |
| Style | VNB-S |
| Grade | PR930 |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Application | | Micro Boring | |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Applicable Material | | Steel | |
| Series/List # | SWIQ |
| Corner Radius (RE) | 0.008″ |
| Measurement Type | Metric |
| Functional Width (WF) | 3.5 mm |
| Overall Length (OAL) | 30.8 mm |
