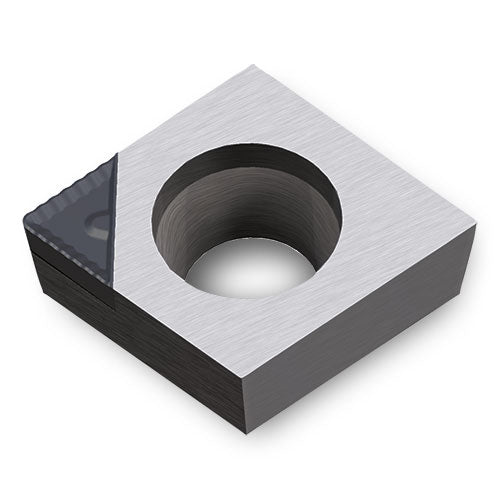

CCGT32.52CB KP300
Item #: IC035402915
Brand: Ingersoll
Model #: 5402915
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Grade | KP300 |
| Corner Radius (RE) | 0.031″ |
| Fixing Hole Diameter (D1) | 0.173″ |
| Insert Size | 32.52 |
| Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.382″ |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.156″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Body Material | Carbide |
| Insert Included Angle (EPSR) | 80 Degrees |
| Cutting Edge Effective Length (LE) | 0.157″ |
