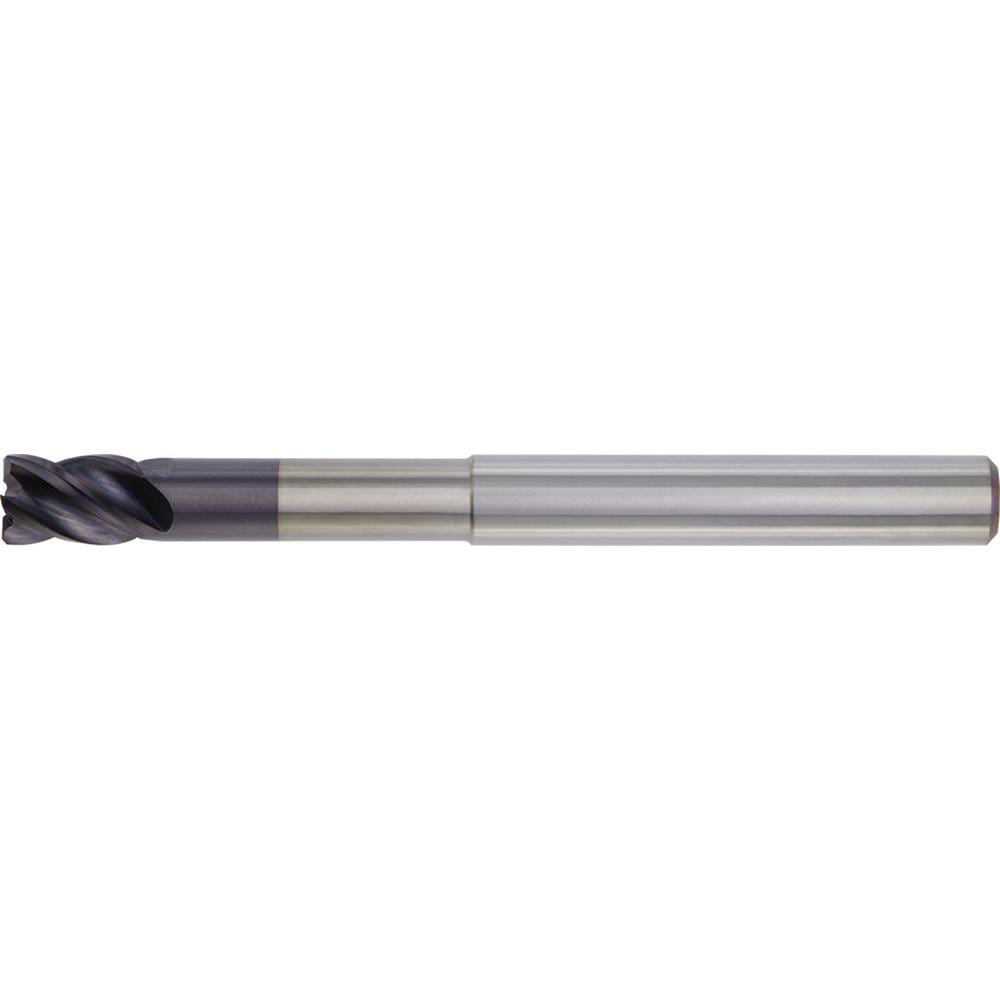

Brand: Widia / Part #: 3738941
Item #: 00012922
Brand: Widia
Model #: 3738941
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Overall Length (Inch) | 4 |
| Length of Cut (Inch) | 3/8 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Extended |
| Flute Type | Helical |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Material Removal Type | Roughing & Finishing |
| Neck Diameter (mm) | 0.23 |
| Neck Diameter (Decimal Inch) | 0.2350 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Primary Workpiece Material | Hard Material; Cast Iron; High Temperature Alloy; Steel |
| Primary Workpiece Material Code | P; S; H; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Series | 4VN5 |
