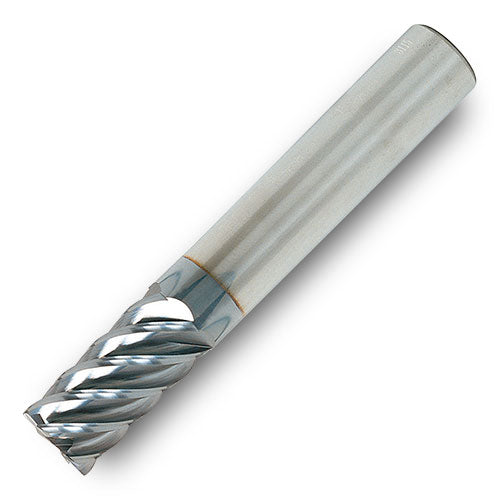

48J20076T4RD140 IN2006
Item #: IC045650957
Brand: Ingersoll
Model #: 5650957
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Depth of Cut Maximum (APMX) | 76 mm |
| Application | Countersinking | Shouldering | Slotting |
| Overall Length (OAL) | 140 mm |
| Grade | IN2006 |
| Coating | TiAlN |
| Body Material | Steel |
| Flute Count (NOF) | 6 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
