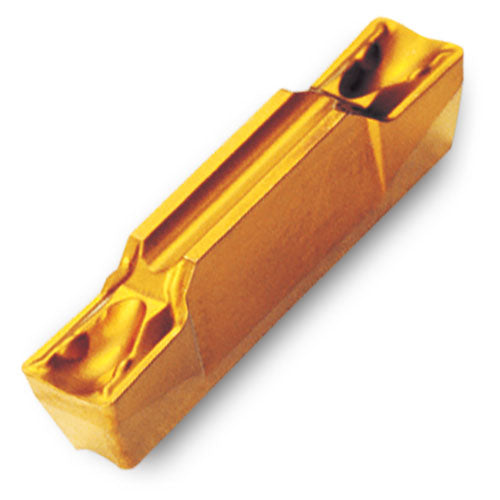

TDXU3E-0.3 CT3000
Item #: IC045770002
Brand: Ingersoll
Model #: 5770002
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.118″ |
| Grade | CT3000 |
| Corner Radius (RE) | 0.012″ |
| Application | | Countersinking | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | Parting | |
| Cutting Depth Maximum (CDX) | 0.748″ |
| Insert Seat Size Code (SSC) | 3 |
| Clearance Angle Major (AN) | 7 Degrees |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.185″ |
| Min. Grooving Feed (fg(min)) | 0.0028″ |
| Insert Length (INSL) | 0.79″ |
| Body Material | Carbide |
