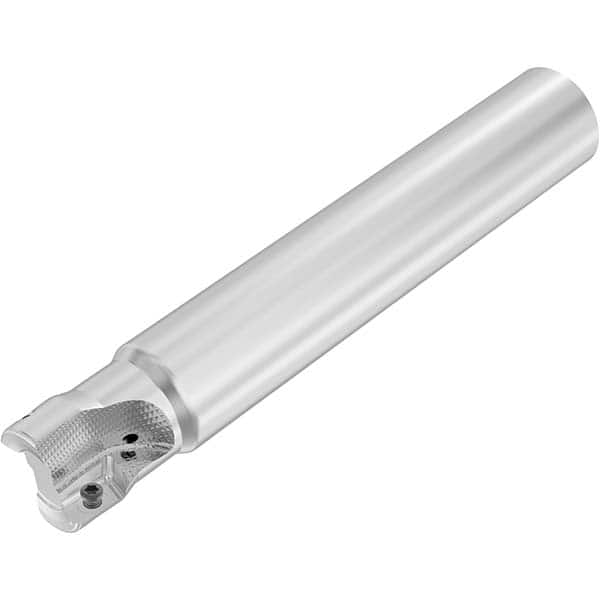

Seco - Indexable Square-Shoulder End Mills Cutting Diameter (mm): 32.00 Cutting Diameter (Inch): 1.26
Item #: 18138917
Brand: Seco
Model #: 03336101
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 32.00 ; Cutting Diameter (Inch): 1.26 ; Shank Type: Cylindrical ; Shank Diameter (mm): 32.0000 ; Overall Length/Projection (mm): 195.00 ; Lead Angle: 90
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Inch) | 1.26 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.0000 |
| Overall Length/Projection (mm) | 195.00 |
| Lead Angle | 90 |
| Series | R217.69 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.00 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 32.0000 |
| Head Length (mm) | 40.00 |
| Weldon Flat | No |
| Insert Compatibility | XOEX; XOMX |
| Shank Length (mm) | 155.000 |
| Maximum RPM | 14800.000 |
| Toolholder Material | Steel |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Series | R217.69 |
| Lead Angle | 90 |
| Insert Compatibility | XOEX; XOMX |
| Insert Holding Method | Screw |
