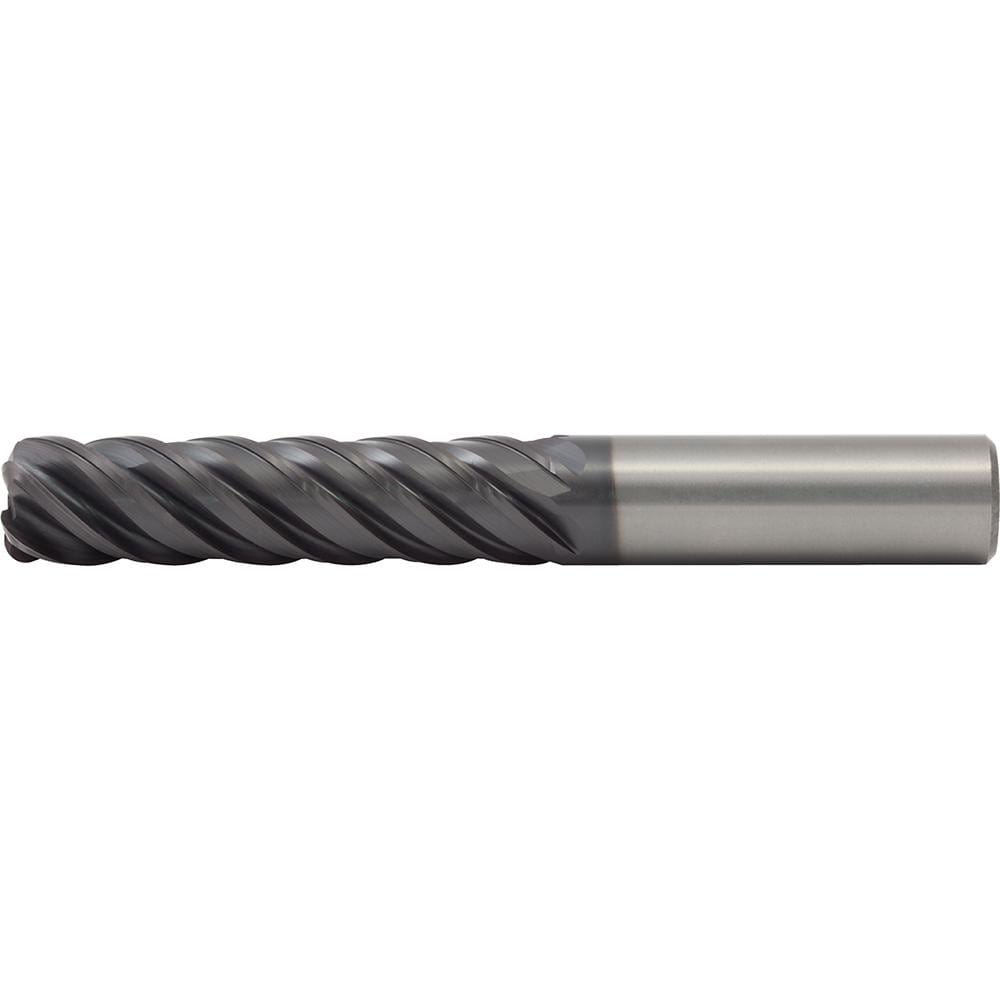

Brand: Widia / Part #: 4124301
Item #: 34038083
Brand: Widia
Model #: 4124301
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7090 |
| Mill Diameter (mm) | 18.00 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 72.0000 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Finish/Coating | AlTiN |
| Shank Diameter (mm) | 18.0000 |
| Helix Angle | 43 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Overall Length (mm) | 150.0000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 2.8300 |
| Material Grade | AlTiN-MT |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Overall Length (Decimal Inch) | 5.9060 |
| Flute Direction | Right Hand |
| Flute Type | Variable Index |
| Helix Style | Medium |
| Length Type | Extra Long |
| Reach Length (Decimal Inch) | 2.8300 |
| Reach Length (mm) | 72.00 |
| Through Coolant | No |
| Series | 5718 |
