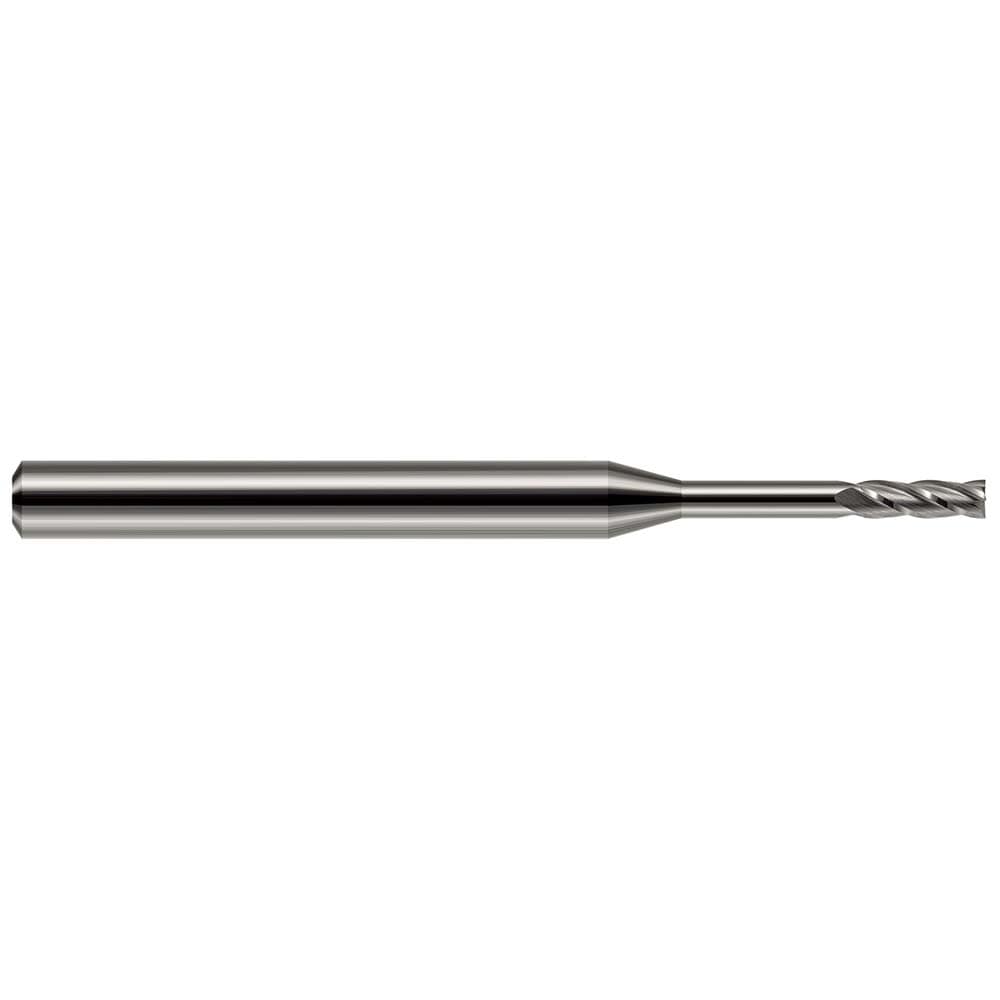

Brand: Harvey Tool / Part #: 76205
Item #: 82833070
Brand: Harvey Tool
Model #: 76205
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0050 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 1/64 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 1-1/2 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.0150 |
| Material Grade | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Flute Type | Helical Flute |
| Reach Length (Decimal Inch) | 0.0400 |
| Series | Miniature End Mills - Square - Long Reach, Standard Flute |
