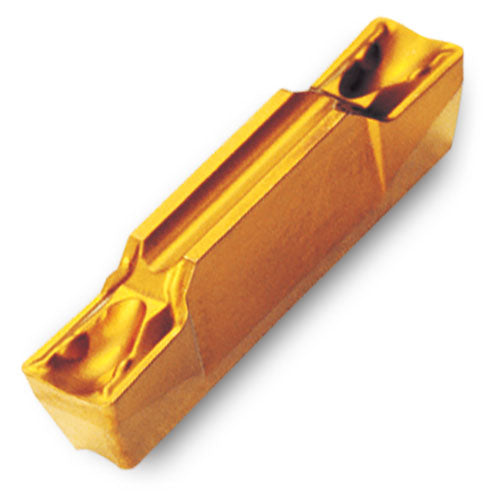

TDXU5E-0.4 PV3520
Item #: IC046307279
Brand: Ingersoll
Model #: 6307279
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.197″ |
| Grade | PV3520 |
| Corner Radius (RE) | 0.016″ |
| Application | | Countersinking | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | Parting | |
| Cutting Depth Maximum (CDX) | 0.945″ |
| Insert Seat Size Code (SSC) | 5 |
| Clearance Angle Major (AN) | 7 Degrees |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.205″ |
| Min. Grooving Feed (fg(min)) | 0.0043″ |
| Insert Length (INSL) | 0.98″ |
| Body Material | Carbide |
