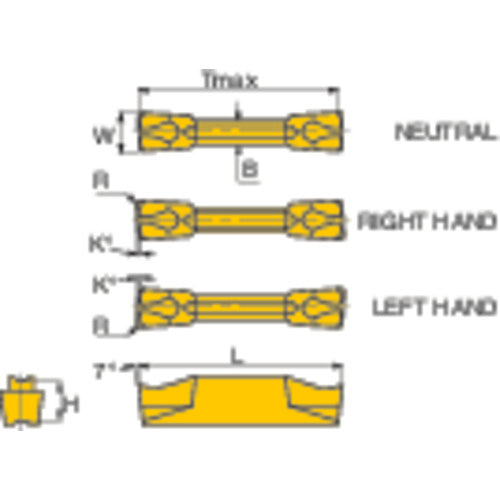

TDJ3-6R K10
Item #: IC046308657
Brand: Ingersoll
Model #: 6308657
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.118″ |
| Cutting Edge Angle Major Left Hand (PSIRL) | 6 Degrees |
| Corner Radius (RE) | 0.008″ |
| Insert Size | 3 |
| Insert Thickness (S) | 0.185″ |
| Number of Cutting Edges | 2 |
| Insert Length (INSL) | 0.79″ |
| Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.748″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Grade | K10 |
| Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
| Insert Seat Size Code (SSC) | 3 |
| Application | | Ext. Grooving | Parting | |
