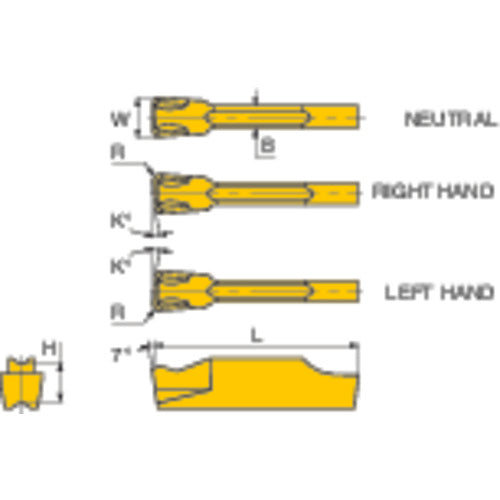

TSC4-15R TT7220
Item #: IC046308769
Brand: Ingersoll
Model #: 6308769
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.157″ |
| Insert Size | 4 |
| Corner Radius (RE) | 0.012″ |
| Height | 0.185″ |
| Insert Length (INSL) | 0.79″ |
| Angle | 15 Degrees |
| Coating | TiCN |
| Measurement Type | Inch |
| Grade | TT7220 |
| Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
| Insert Seat Size Code (SSC) | 4 |
| Application | | Ext. Grooving | Parting | |
