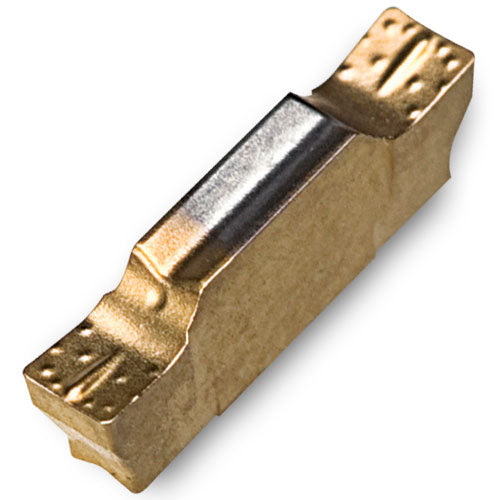

TDIP3.00E-0.20 TT9080
Item #: IC046308830
Brand: Ingersoll
Model #: 6308830
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.118″ |
| Grade | TT9080 |
| Corner Radius (RE) | 0.008″ |
| Application | | Ext. Grooving | |
| Cutting Depth Maximum (CDX) | 0.051″ |
| Number of Cutting Edges | 2 |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Seat Size Code (SSC) | 3 |
| Insert Thickness (S) | 0.094″ |
| Measurement Type | Inch |
| Insert Length (INSL) | 0.394″ |
| Min. Grooving Feed (fg(min)) | 0.0043″ |
| Coating | TiAlN+TiN |
| Body Material | Carbide |
