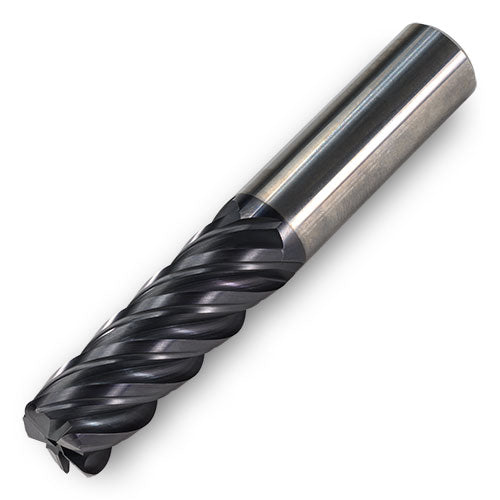

47DE1040S1RC06S5 IN2006
Item #: IC049586481
Brand: Ingersoll
Model #: 9586481
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Application | Helical Interpolation | Rampdown | Shouldering |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 4″ |
| Body Material | Steel |
| Overall Length (OAL) | 7″ |
| Decimal Equivalent | 1″ |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 43 Degrees |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| End Shape | Square |
