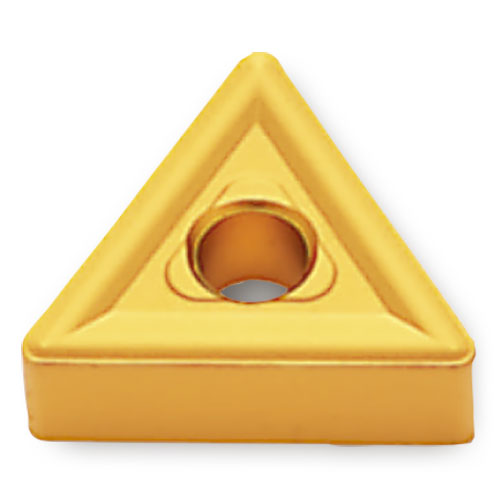

TNMG543 TT7220
Item #: IC065514335
Brand: Ingersoll
Model #: 5514335
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Grade | TT7220 |
| Corner Radius (RE) | 0.047″ |
| Min D.O.C. | 0.118″ |
| Insert Size | 543 |
| Depth of Cut Maximum (APMX) | 0.276″ |
| Cutting Edge Length (L) | 0.92″ |
| Min. Turning Feed (ft(min)) | 0.01″ |
| Insert Thickness (S) | 1/4″ |
| Max. Turning Feed (ft(max)) | 0.022″ |
| Inscribed Circle Diameter (IC) | 5/8″ |
| Measurement Type | Inch |
| Coating | TiCN |
| Body Material | Carbide |
