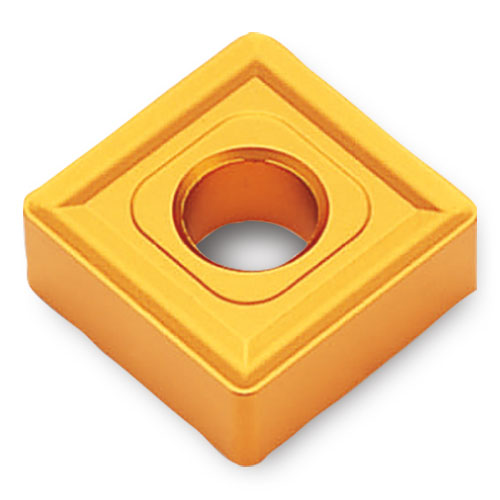

SNMG854 TT5100
Item #: IC065515060
Brand: Ingersoll
Model #: 5515060
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Grade | TT5100 |
| Corner Radius (RE) | 0.063″ |
| Min D.O.C. | 0.157″ |
| Insert Size | 854 |
| Depth of Cut Maximum (APMX) | 0.472″ |
| Cutting Edge Length (L) | 0.937″ |
| Min. Turning Feed (ft(min)) | 0.014″ |
| Insert Thickness (S) | 0.313″ |
| Max. Turning Feed (ft(max)) | 0.028″ |
| Inscribed Circle Diameter (IC) | 1″ |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3 |
| Body Material | Carbide |
