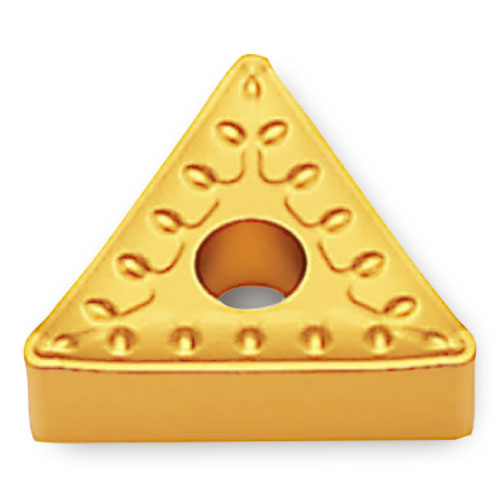

TNMM433RH TT5100
Item #: IC065515084
Brand: Ingersoll
Model #: 5515084
| Product Specifications | |
|---|---|
| Insert Style | TNMM |
| Grade | TT5100 |
| Corner Radius (RE) | 0.047″ |
| Min D.O.C. | 0.098″ |
| Insert Size | 433 |
| Depth of Cut Maximum (APMX) | 0.276″ |
| Cutting Edge Length (L) | 0.704″ |
| Min. Turning Feed (ft(min)) | 0.012″ |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.028″ |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3 |
| Body Material | Carbide |
