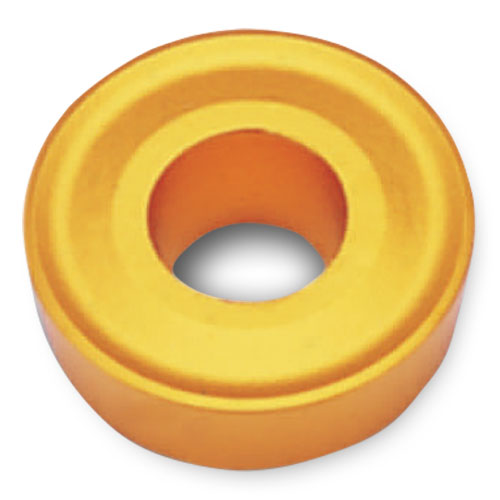

RCMX100300 TT5100
Item #: IC065515102
Brand: Ingersoll
Model #: 5515102
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Min D.O.C. | 0.059″ |
| Insert Size | 100300 |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Thickness (S) | 1/8″ |
| Min. Turning Feed (ft(min)) | 0.01″ |
| Inscribed Circle Diameter (IC) | 0.394″ |
| Max. Turning Feed (ft(max)) | 0.02″ |
| Coating | TiCN+Al2O3 |
| Measurement Type | Inch |
| Grade | TT5100 |
| Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.142″ |
