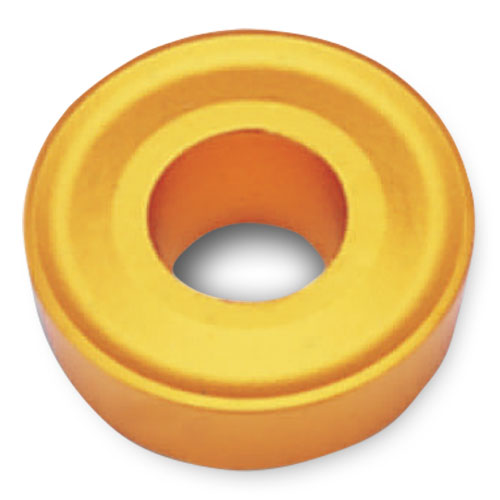

RCMX200600 TT5100
Item #: IC065515103
Brand: Ingersoll
Model #: 5515103
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Min D.O.C. | 0.138″ |
| Insert Size | 200600 |
| Depth of Cut Maximum (APMX) | 0.354″ |
| Insert Thickness (S) | 1/4″ |
| Min. Turning Feed (ft(min)) | 0.019″ |
| Inscribed Circle Diameter (IC) | 0.787″ |
| Max. Turning Feed (ft(max)) | 0.035″ |
| Coating | TiCN+Al2O3 |
| Measurement Type | Inch |
| Grade | TT5100 |
| Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.256″ |
