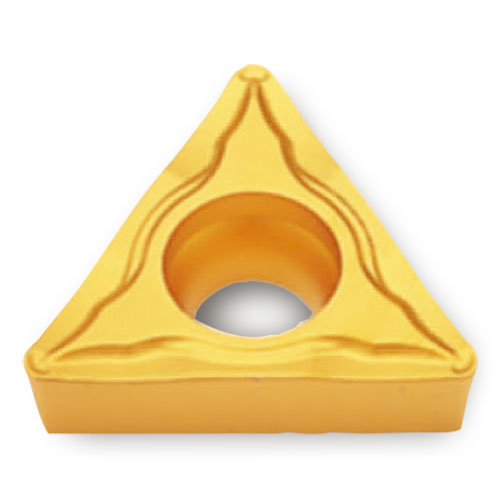

TCMT732FG TT5100
Item #: IC065515108
Brand: Ingersoll
Model #: 5515108
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Fixing Hole Diameter (D1) | 0.098″ |
| Corner Radius (RE) | 0.031″ |
| Min D.O.C. | 0.024″ |
| Insert Size | 732 |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Cutting Edge Length (L) | 0.299″ |
| Min. Turning Feed (ft(min)) | 0.004″ |
| Insert Thickness (S) | 0.094″ |
| Max. Turning Feed (ft(max)) | 0.01″ |
| Inscribed Circle Diameter (IC) | 0.219″ |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3 |
| Body Material | Carbide |
| Grade | TT5100 |
