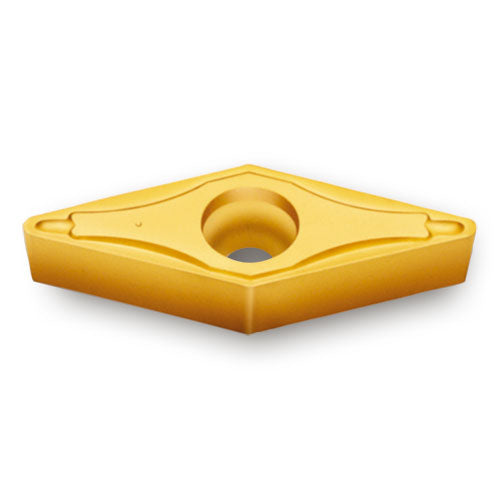

VBMT332FG PV3030
Item #: IC065516259
Brand: Ingersoll
Model #: 5516259
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Fixing Hole Diameter (D1) | 0.173″ |
| Corner Radius (RE) | 0.031″ |
| Min D.O.C. | 0.028″ |
| Insert Size | 332 |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Cutting Edge Length (L) | 0.575″ |
| Min. Turning Feed (ft(min)) | 0.004″ |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.01″ |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Grade | PV3030 |
| Body Material | Carbide |
