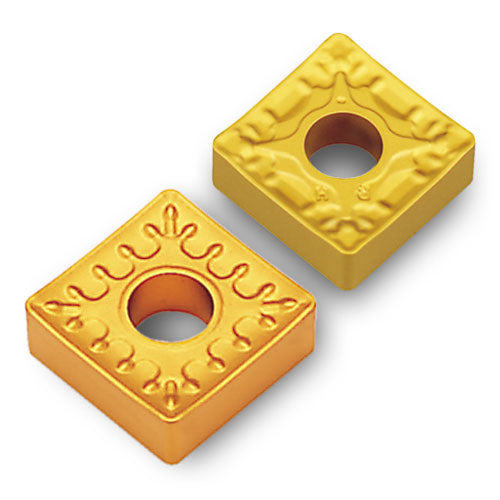

SNMM644RH TT7100
Item #: IC065516901
Brand: Ingersoll
Model #: 5516901
| Product Specifications | |
|---|---|
| Insert Style | SNMM |
| Grade | TT7100 |
| Corner Radius (RE) | 0.063″ |
| Min D.O.C. | 0.157″ |
| Insert Size | 644 |
| Depth of Cut Maximum (APMX) | 0.354″ |
| Cutting Edge Length (L) | 0.685″ |
| Min. Turning Feed (ft(min)) | 0.018″ |
| Insert Thickness (S) | 1/4″ |
| Max. Turning Feed (ft(max)) | 0.039″ |
| Inscribed Circle Diameter (IC) | 3/4″ |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
