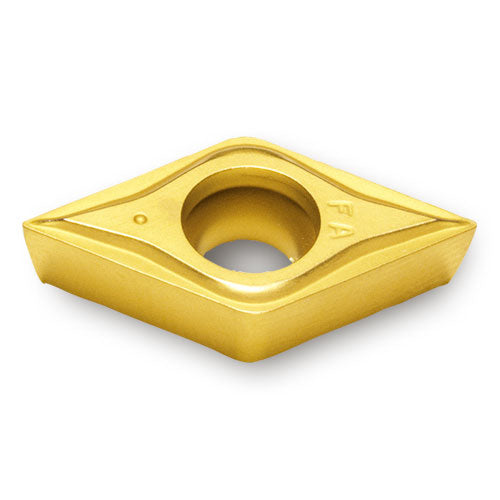

DCMT32.50.5FA PV3010
Item #: IC065517247
Brand: Ingersoll
Model #: 5517247
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Fixing Hole Diameter (D1) | 0.173″ |
| Corner Radius (RE) | 0.008″ |
| Min D.O.C. | 0.006″ |
| Insert Size | 32.50.5 |
| Depth of Cut Maximum (APMX) | 0.06″ |
| Cutting Edge Length (L) | 0.445″ |
| Min. Turning Feed (ft(min)) | 0.002″ |
| Insert Thickness (S) | 0.156″ |
| Max. Turning Feed (ft(max)) | 0.006″ |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Grade | PV3010 |
| Body Material | Carbide |
