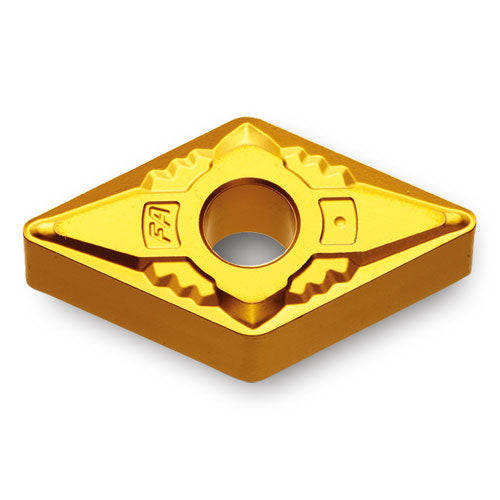

DNMG442FA PV3010
Item #: IC065517721
Brand: Ingersoll
Model #: 5517721
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Min D.O.C. | 0.008″ |
| Corner Radius (RE) | 0.031″ |
| Depth of Cut Maximum (APMX) | 0.08″ |
| Insert Size | 442 |
| Min. Turning Feed (ft(min)) | 0.002″ |
| Cutting Edge Length (L) | 0.579″ |
| Max. Turning Feed (ft(max)) | 0.008″ |
| Insert Thickness (S) | 1/4″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Body Material | Carbide |
| Grade | PV3010 |
