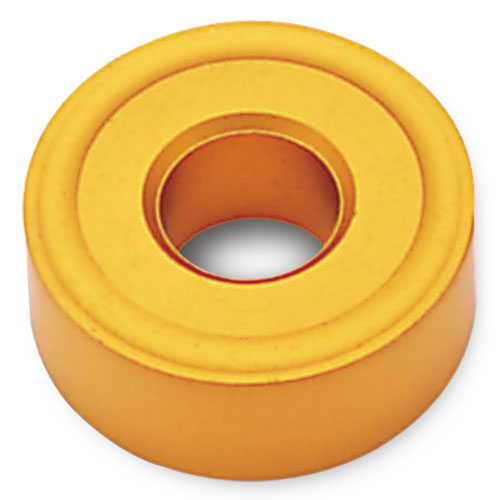

RNMG86 TT8115
Item #: IC065518706
Brand: Ingersoll
Model #: 5518706
| Product Specifications | |
|---|---|
| Insert Style | RNMG |
| Min D.O.C. | 0.157″ |
| Insert Size | 86 |
| Depth of Cut Maximum (APMX) | 0.472″ |
| Insert Thickness (S) | 3/8″ |
| Min. Turning Feed (ft(min)) | 0.022″ |
| Inscribed Circle Diameter (IC) | 1″ |
| Max. Turning Feed (ft(max)) | 0.047″ |
| Coating | TiCN+Al2O3+TiN |
| Measurement Type | Inch |
| Grade | TT8115 |
| Body Material | Carbide |
