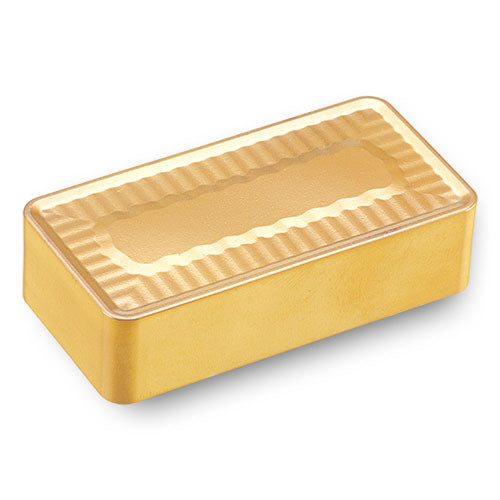

LNMX501432HY TT7100
Item #: IC065519687
Brand: Ingersoll
Model #: 5519687
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Depth of Cut Maximum (APMX) | 1.57″ |
| Corner Radius (RE) | 0.126″ |
| Min. Turning Feed (ft(min)) | 0.025″ |
| Insert Size | 501432 |
| Max. Turning Feed (ft(max)) | 0.059″ |
| Cutting Edge Length (L) | 2″ |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.559″ |
| Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Insert Width (W1) | 1″ |
| Grade | TT7100 |
| Body Material | Carbide |
| Min D.O.C. | 0.197″ |
