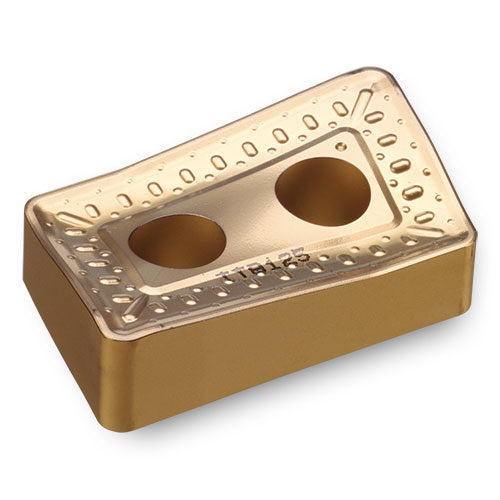

LNMM401224R-HX TT7100
Item #: IC065519735
Brand: Ingersoll
Model #: 5519735
| Product Specifications | |
|---|---|
| Insert Style | LNMM |
| Fixing Hole Diameter (D1) | 0.36″ |
| Corner Radius (RE) | 0.094″ |
| Min D.O.C. | 0.236″ |
| Insert Size | 401224 |
| Depth of Cut Maximum (APMX) | 1.26″ |
| Cutting Edge Length (L) | 1.574″ |
| Min. Turning Feed (ft(min)) | 0.028″ |
| Insert Thickness (S) | 0.46″ |
| Max. Turning Feed (ft(max)) | 0.059″ |
| Insert Included Angle (EPSR) | 80 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiCN+Al2O3+TiN |
| Measurement Type | Inch |
| Grade | TT7100 |
| Body Material | Carbide |
