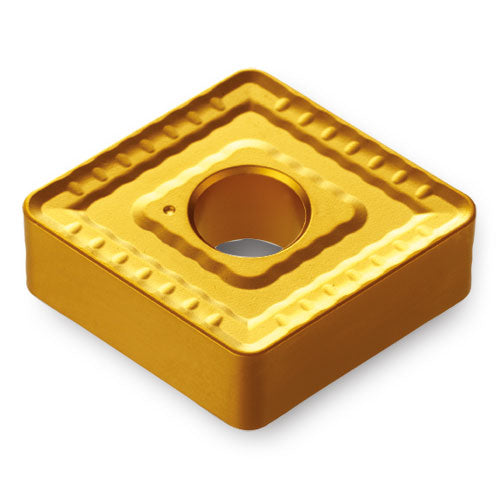

CNMM856HT TT9225
Item #: IC065520552
Brand: Ingersoll
Model #: 5520552
| Product Specifications | |
|---|---|
| Insert Style | CNMM |
| Grade | TT9225 |
| Corner Radius (RE) | 0.094″ |
| Min D.O.C. | 0.197″ |
| Insert Size | 856 |
| Depth of Cut Maximum (APMX) | 0.472″ |
| Cutting Edge Length (L) | 1.015″ |
| Min. Turning Feed (ft(min)) | 0.022″ |
| Insert Thickness (S) | 0.313″ |
| Max. Turning Feed (ft(max)) | 0.051″ |
| Inscribed Circle Diameter (IC) | 1″ |
| Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
