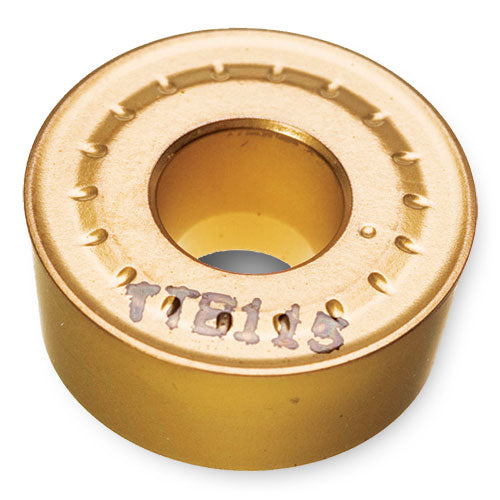

RCMX320900RA TT8125
Item #: IC065520969
Brand: Ingersoll
Model #: 5520969
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Min D.O.C. | 0.157″ |
| Insert Size | 320900 |
| Depth of Cut Maximum (APMX) | 0.59″ |
| Insert Thickness (S) | 0.312″ |
| Min. Turning Feed (ft(min)) | 0.023″ |
| Inscribed Circle Diameter (IC) | 1.26″ |
| Max. Turning Feed (ft(max)) | 0.06″ |
| Coating | TiCN+Al2O3+TiN |
| Clearance Angle Major (AN) | 7 Degrees |
| Grade | TT8125 |
| Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.354″ |
| Body Material | Carbide |
