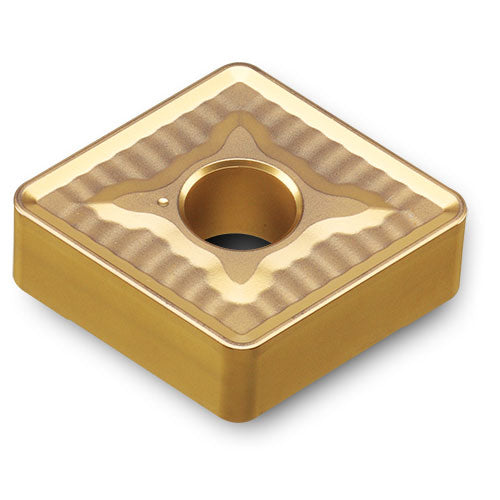

CNMD646HY TT8125
Item #: IC065521329
Brand: Ingersoll
Model #: 5521329
| Product Specifications | |
|---|---|
| Insert Style | CNMD |
| Grade | TT8125 |
| Corner Radius (RE) | 0.094″ |
| Min D.O.C. | 0.16″ |
| Insert Size | 646 |
| Depth of Cut Maximum (APMX) | 0.59″ |
| Cutting Edge Length (L) | 0.76″ |
| Min. Turning Feed (ft(min)) | 0.02″ |
| Insert Thickness (S) | 1/4″ |
| Max. Turning Feed (ft(max)) | 0.043″ |
| Inscribed Circle Diameter (IC) | 3/4″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees |
| Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN |
