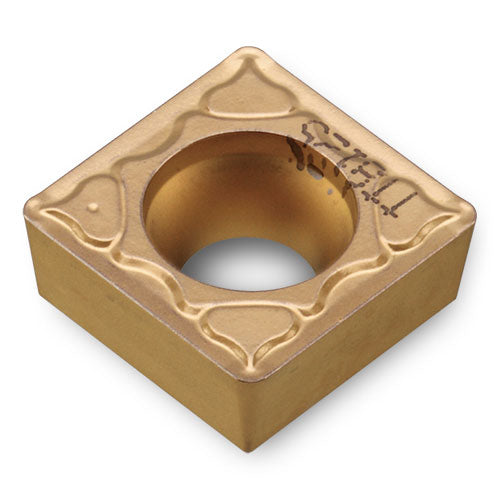

SCMT433PC TT9225
Item #: IC065521466
Brand: Ingersoll
Model #: 5521466
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.047″ |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Size | 433 |
| Min. Turning Feed (ft(min)) | 0.005″ |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.014″ |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Included Angle (EPSR) | 90 Degrees |
| Cutting Direction (HAND) | Neutral |
| Coating | TiCN+Al2O3+TiN |
| Measurement Type | Inch |
| Grade | TT9225 |
| Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.217″ |
| Cutting Edge Effective Length (LE) | 0.453″ |
