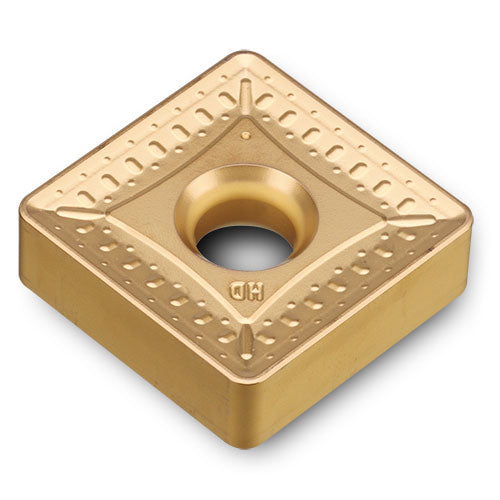

SNMD1066HT TT7100
Item #: IC065521700
Brand: Ingersoll
Model #: 5521700
| Product Specifications | |
|---|---|
| Insert Style | SNMD |
| Min D.O.C. | 0.236″ |
| Corner Radius (RE) | 0.094″ |
| Depth of Cut Maximum (APMX) | 0.866″ |
| Insert Size | 1066 |
| Min. Turning Feed (ft(min)) | 0.02″ |
| Insert Thickness (S) | 3/8″ |
| Max. Turning Feed (ft(max)) | 0.055″ |
| Inscribed Circle Diameter (IC) | 1-1/4″ |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
| Grade | TT7100 |
