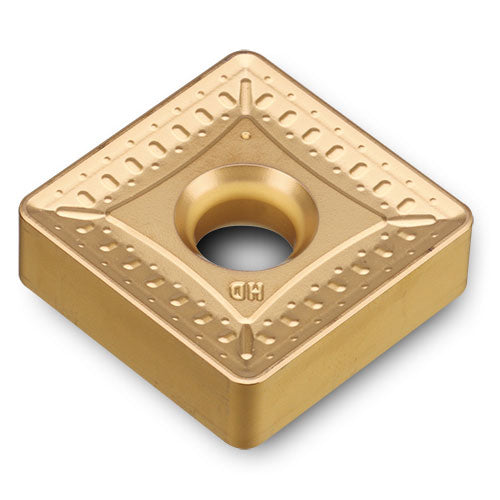

SNMD1066HD TT7100
Item #: IC065521933
Brand: Ingersoll
Model #: 5521933
| Product Specifications | |
|---|---|
| Insert Style | SNMD |
| Grade | TT7100 |
| Corner Radius (RE) | 0.094″ |
| Min D.O.C. | 0.16″ |
| Insert Size | 1066 |
| Depth of Cut Maximum (APMX) | 0.59″ |
| Cutting Edge Length (L) | 1-1/4″ |
| Min. Turning Feed (ft(min)) | 0.022″ |
| Insert Thickness (S) | 3/8″ |
| Max. Turning Feed (ft(max)) | 0.059″ |
| Inscribed Circle Diameter (IC) | 1-1/4″ |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
