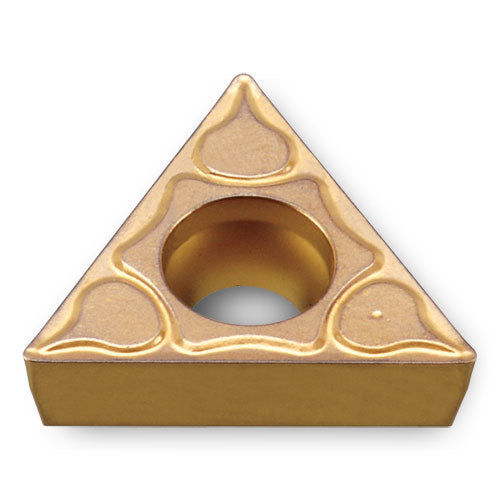

TCMT731PC TT8115
Item #: IC065522243
Brand: Ingersoll
Model #: 5522243
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Fixing Hole Diameter (D1) | 0.098″ |
| Insert Size | 731 |
| Min D.O.C. | 0.012″ |
| Cutting Edge Length (L) | 0.339″ |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Thickness (S) | 0.094″ |
| Min. Turning Feed (ft(min)) | 0.002″ |
| Inscribed Circle Diameter (IC) | 0.219″ |
| Max. Turning Feed (ft(max)) | 0.007″ |
| Coating | TiCN+Al2O3+TiN |
| Measurement Type | Inch |
| Grade | TT8115 |
| Body Material | Carbide |
