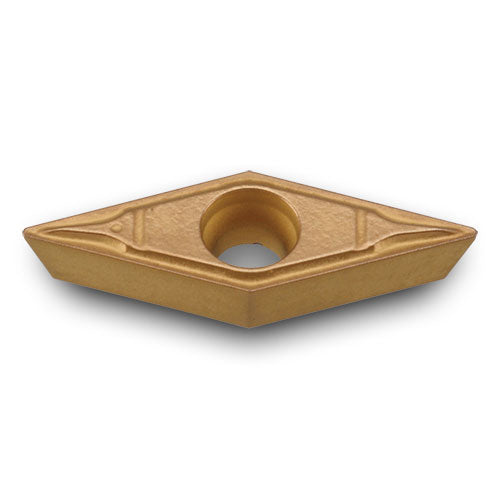

VCMT1.51.51PC TT8125
Item #: IC065522256
Brand: Ingersoll
Model #: 5522256
| Product Specifications | |
|---|---|
| Insert Style | VCMT |
| Fixing Hole Diameter (D1) | 0.094″ |
| Corner Radius (RE) | 0.016″ |
| Min D.O.C. | 0.008″ |
| Insert Size | 1.51.51 |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Insert Thickness (S) | 0.094″ |
| Min. Turning Feed (ft(min)) | 0.002″ |
| Inscribed Circle Diameter (IC) | 0.188″ |
| Max. Turning Feed (ft(max)) | 0.008″ |
| Coating | TiCN+Al2O3+TiN |
| Measurement Type | Inch |
| Grade | TT8125 |
| Body Material | Carbide |
