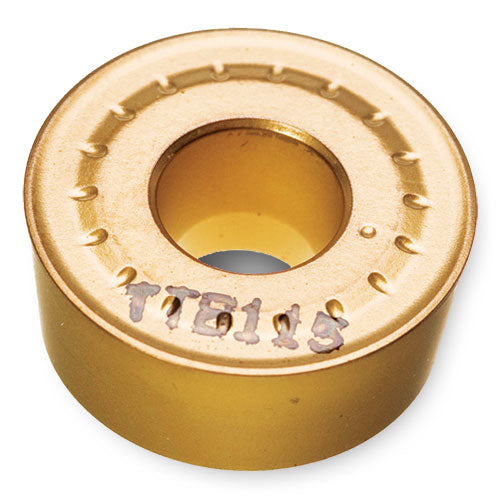

RCMX200600RA TT8135
Item #: IC065522665
Brand: Ingersoll
Model #: 5522665
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Min D.O.C. | 0.118″ |
| Insert Size | 200600 |
| Depth of Cut Maximum (APMX) | 0.354″ |
| Insert Thickness (S) | 1/4″ |
| Min. Turning Feed (ft(min)) | 0.016″ |
| Inscribed Circle Diameter (IC) | 0.787″ |
| Max. Turning Feed (ft(max)) | 0.035″ |
| Coating | TiCN+Al2O3+TiN |
| Clearance Angle Major (AN) | 7 Degrees |
| Grade | TT8135 |
| Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.256″ |
| Body Material | Carbide |
