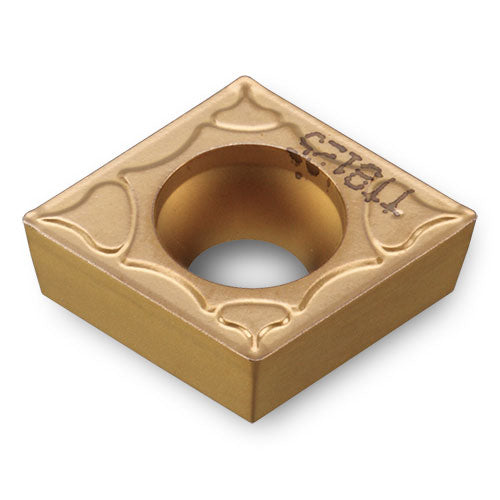

CCMT21.52PC TT9080
Item #: IC065522836
Brand: Ingersoll
Model #: 5522836
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Fixing Hole Diameter (D1) | 0.11″ |
| Corner Radius (RE) | 0.031″ |
| Min D.O.C. | 0.007″ |
| Insert Size | 21.52 |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Cutting Edge Length (L) | 0.254″ |
| Min. Turning Feed (ft(min)) | 0.003″ |
| Insert Thickness (S) | 0.094″ |
| Max. Turning Feed (ft(max)) | 0.01″ |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Included Angle (EPSR) | 80 Degrees |
| Cutting Direction (HAND) | Neutral |
| Coating | TiAlN+TiN |
| Measurement Type | Inch |
| Grade | TT9080 |
| Body Material | Carbide |
