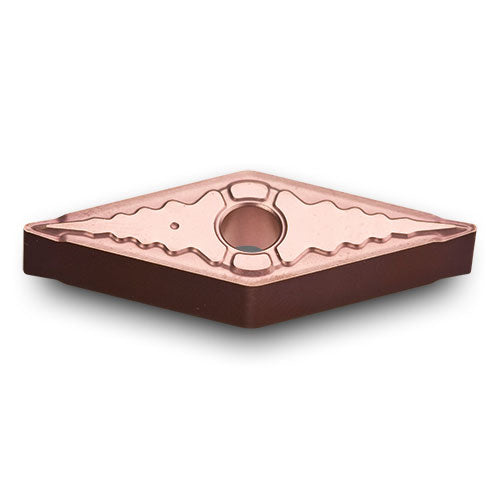

VNMG331EA TT9080
Item #: IC065522885
Brand: Ingersoll
Model #: 5522885
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Grade | TT9080 |
| Corner Radius (RE) | 0.016″ |
| Min D.O.C. | 0.004″ |
| Insert Size | 331 |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Cutting Edge Length (L) | 0.614″ |
| Min. Turning Feed (ft(min)) | 0.002″ |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.008″ |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Coating | TiAlN+TiN |
| Body Material | Carbide |
