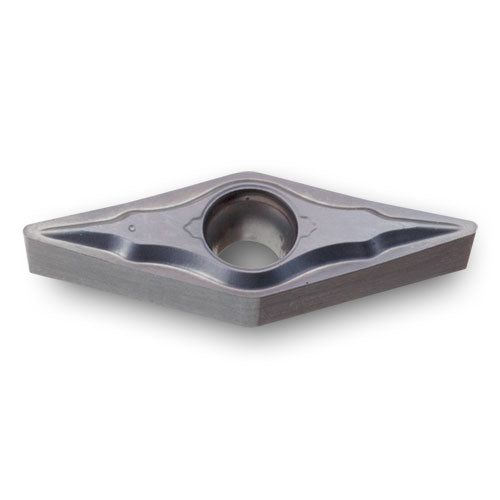

VCGT220SA TT9020
Item #: IC065522938
Brand: Ingersoll
Model #: 5522938
| Product Specifications | |
|---|---|
| Insert Style | VCGT |
| Fixing Hole Diameter (D1) | 0.11″ |
| Corner Radius (RE) | 0.004″ |
| Min D.O.C. | 0.004″ |
| Insert Size | 220 |
| Depth of Cut Maximum (APMX) | 0.06″ |
| Cutting Edge Length (L) | 0.425″ |
| Min. Turning Feed (ft(min)) | 0.001″ |
| Insert Thickness (S) | 1/8″ |
| Max. Turning Feed (ft(max)) | 0.003″ |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Measurement Type | Inch |
| Coating | TiCN |
| Body Material | Carbide |
| Grade | TT9020 |
