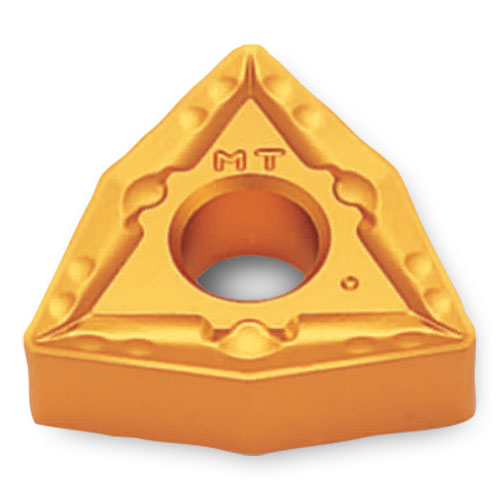

WNMG332MT TT5080
Item #: IC065523069
Brand: Ingersoll
Model #: 5523069
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Grade | TT5080 |
| Corner Radius (RE) | 0.031″ |
| Min D.O.C. | 0.047″ |
| Insert Size | 332 |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Cutting Edge Length (L) | 0.24″ |
| Min. Turning Feed (ft(min)) | 0.006″ |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.018″ |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiAlN+TiN |
| Body Material | Carbide |
