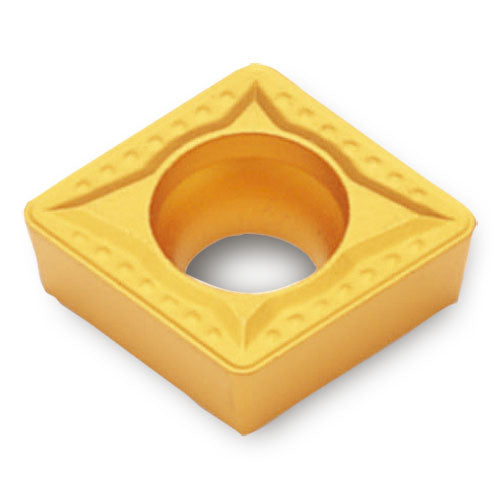

CCMT431MT TT7015
Item #: IC065523569
Brand: Ingersoll
Model #: 5523569
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Fixing Hole Diameter (D1) | 0.217″ |
| Corner Radius (RE) | 0.016″ |
| Min D.O.C. | 0.051″ |
| Insert Size | 431 |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Cutting Edge Length (L) | 0.508″ |
| Min. Turning Feed (ft(min)) | 0.005″ |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.012″ |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Included Angle (EPSR) | 80 Degrees |
| Cutting Direction (HAND) | Neutral |
| Coating | TiCN+Al2O3 |
| Measurement Type | Inch |
| Grade | TT7015 |
| Body Material | Carbide |
