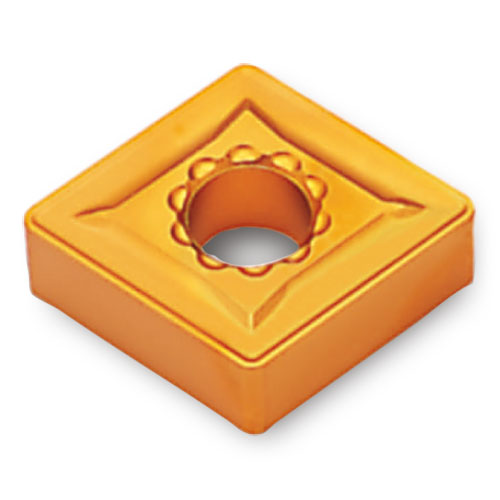

CNMG544RT TT7015
Item #: IC065523634
Brand: Ingersoll
Model #: 5523634
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Min D.O.C. | 0.118″ |
| Corner Radius (RE) | 0.063″ |
| Depth of Cut Maximum (APMX) | 0.276″ |
| Insert Size | 544 |
| Min. Turning Feed (ft(min)) | 0.012″ |
| Cutting Edge Length (L) | 0.635″ |
| Max. Turning Feed (ft(max)) | 0.033″ |
| Insert Thickness (S) | 1/4″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 5/8″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | DNMA 544-RT |
| Coating | TiCN+Al2O3 |
| Body Material | Carbide |
| Grade | TT7015 |
